Description

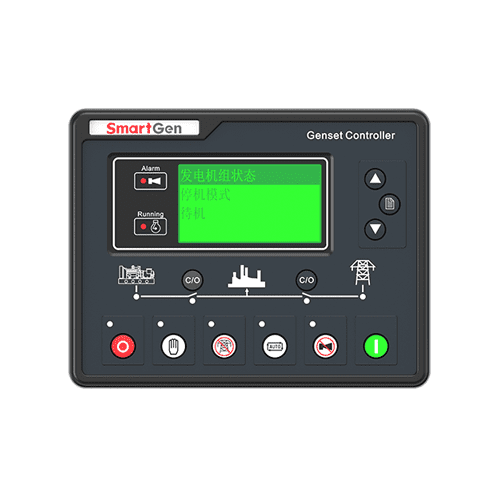

The SmartGen HGM7220 is a robust AMF (Auto Mains Failure) controller engineered for single-unit generator sets. It provides automatic start/stop control, real-time monitoring, and fault protection to ensure smooth and reliable operation of your power system. Featuring a 132 × 64 backlit LCD screen with multilingual support, the controller offers intuitive status display and fault diagnostics. Inputs include 7 digital channels and 5 analog sensor channels (e.g., oil pressure, temperature, fuel level), while its outputs consist of 8 relays for start, stop, ATS switching, pre-heat, idle speed, and alarm functions.
The HGM7220 also supports scheduled start/stop cycles, maintenance timing, and event logging through a built-in real-time clock. All configuration parameters are preserved in non-volatile memory, guaranteeing they remain after power loss. The controller runs on a wide DC supply voltage (8–35 V), making it compatible with various generator battery systems. Its rugged design supports operating temperatures from –25 °C to +70 °C.
Key Features
- Auto Mains Failure (AMF) functionality
- Backlit 132 × 64 LCD screen with multilingual interface
- 7 digital inputs; 5 analog (sensor) inputs
- 8 relay outputs (start, stop, ATS, pre-heat, idle, alarm, etc.)
- Measures voltage, current, frequency, and engine parameters
- Scheduled start/stop and maintenance timer
- Event logging with real-time clock
- Non-volatile memory stores all configuration
- DC supply: 8–35 V
- Operating temperature: –25 °C to +70 °C
- Durable, compact housing
